Размеры выходного вала цилиндро-конических мотор-редукторов Bonfiglioli

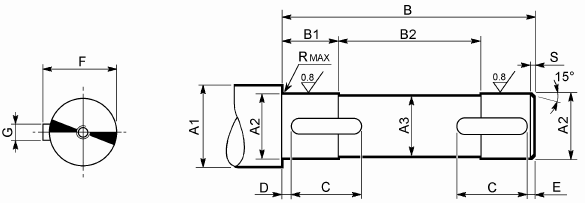

A1

A2

A3

B

B1

B2

C

D

E

F

G

R

S

UNI 6604

A 05

≥ 30

25 h7

24

102

21

62

20

2

2

28

8 h9

0.5

1.5

8x7x20 A

A 10

≥ 35

≥ 30

30 h7

25 h7

29

24

118

118

16

16

87

87

20

20

2

2

2

2

33

28

8 h9

8 h9

0.5

0.5

1.5

1.5

8x7x20 A

8x7x20 A

A 20

≥ 42

≥ 35

35 h7

30 h7

34

29

138

138

20

20

98

98

20

25

2

2

2

2

38

33

10 h9

8 h9

0.5

0.5

1.5

1.5

10x8x20 A

8x7x25 A

A 30

≥ 47

≥ 42

40 h7

35 h7

39

34

158

158

23

23

112

112

30

30

2

2

2

2

43

38

12 h9

10 h9

0.5

0.5

1.5

1.5

12x8x30 A

10x8x30 A

A 35

≥ 47

≥ 42

40 h7

35 h7

39

34

175

175

33

33

109

109

40

40

2

2

2

2

43

38

10 h9

10 h9

1

1

1.5

1.5

12x8x40 A

10x8x40 A

A 41

≥ 52

≥ 47

45 h7

40 h7

44

39

184

184

28

28

128

128

45

50

2.5

2.5

2.5

2.5

49.5

43

14 h9

12 h9

1

1

2

2

14x9x45 A

12x8x50 A

A 50

≥ 63

≥ 57

55 h7

50 h7

54

49

226

226

37.5

37.5

151

151

55

65

2.5

2.5

2.5

2.5

59

53.5

16 h9

14 h9

1

1

2

2

16x10x55 A

14x9x65 A

A 55

≥ 70

≥ 60

60 h7

50 h7

59

49

226

226

37.5

37.5

151

151

65

75

2.5

2.5

2.5

2.5

59

53.5

16 h9

14 h9

2

2

2

2

18x11x65 A

14x9x75 A

A 60

≥ 78

≥ 68

70 h7

60 h7

69

59

248

248

48

48

152

152

70

80

2.5

2.5

2.5

2.5

74.5

64

20 h9

18 h9

2.5

2.5

2

2

20x12x70 A

18x11x80 A

A 70

≥ 89

≥ 78

80 h7

70 h7

79

69

303

303

58

58

187

187

90

110

3

3

3

3

85

74.5

22 h9

20 h9

2.5

2.5

2.5

2.5

22x14x90 A

20x12x110 A

A 80

≥ 99

≥ 89

90 h7

80 h7

89

79

358

358

78

78

202

202

120

130

3

3

3

3

95

85

25 h9

22 h9

2.5

2.5

2.5

2.5

25x14x120 A

22x14x130 A

A 90

≥ 111

≥ 99

100 h7

90 h7

99

89

408

408

78

78

252

252

160

190

3

3

3

3

106

95

28 h9

25 h9

2.5

2.5

2.5

2.5

28x16x160 A

25x14x190 A

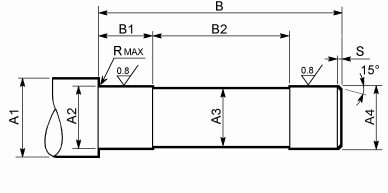

ТИП

A1

A2

A3

A4

B

B1

B2

R

S

A 10

≥ 42

32 h7

29

30 h6

147.5

34

77.5

0.5

1.5

A 20

≥ 48

37 h7

34

35 h6

170

40

89

0.5

1.5

A 30

≥ 54

42 h7

39

40 h6

191.5

48

95.5

0.5

1.5

A 35

≥ 54

42 h7

39

40 h6

208.5

48

112.5

0.5

1.5

A 41

≥ 60

47 h7

44

45 h6

222

53

117

1

2

A 50

≥ 72

57 h7

54

55 g6

264

46

156

1

2

A 55

≥ 72

62 h7

59

60 g6

266

46

158

2,5

2

A 60

≥ 90

72 h7

69

70 g6

293

48

178

2.5

2.5

A 70

≥ 104

82 h7

79

80 g6

352.5

90

172.5

2.5

2.5

A 80

≥ 114

92 h7

89

90 g6

416

100

216

2.5

2.5

A 90

≥ 126

102 h7

99

100 g6

469

78

321

2.5

2.5

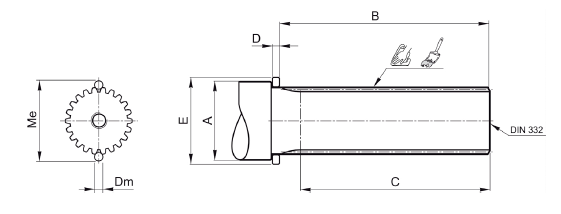

IN 5480

Me

Dm

A

B

C

D

E

DIN 332

A 20

30x1.25x30x22

33.04 0/-0.04

2.75

≥ 40

115.5

≥ 95

7

45

M10

A 30

35x2x30x16

38.93 0/-0.04

4

≥ 45

130

≥ 112

7

50

M12

A 35

35x2x30x16

38.93 0/-0.04

4

≥ 45

147

≥ 129

7

50

M12

A 41

45x2x30x21

48.86 0/-0.04

4

≥ 55

155

≥ 136

7

60

M16

A 50

50x2x30x24

54.14 0/-0.05

4

≥ 60

195

≥ 175

7

65

M16

A 55

50x2x30x24

54.14 0/-0.05

4

≥ 60

195

≥ 175

7

65

M16

A 60

65x2x30x31

68.97 0 /-0.05

4

≥ 75

213

≥ 191

7

80

M20

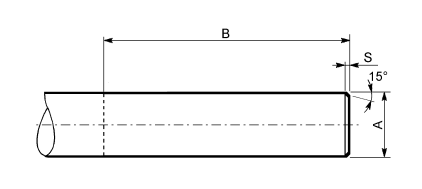

A

B

S

A 10

QF25

25 h11

≥ 184

1.5

QF30

30 h11

A 20

QF25

25 h11

≥ 204

1.5

QF30

30 h11

A 30

QF30

30 h11

≥ 227

1.5

QF35

35 h11

QF40

40 h11

A 35

QF30

30 h11

≥ 243.5

1.5

QF35

35 h11

QF40

40 h11

A 41

QF40

40 h11

≥ 252.5

2

QF45

45 h11

A 50

QF45

45 h11

≥ 300

2

QF50

50 h11

QF55

55 h11

A 55

QF45

45 h11

≥ 297

2

QF50

50 h11

QF55

55 h11

QF60

60 h11

A 60

QF55

55 h11

≥ 324

2.5

QF60

60 h11

QF65

65 h11

QF70

70 h11
