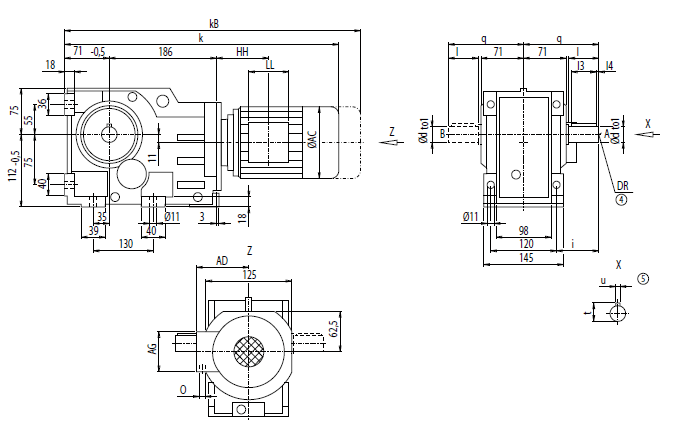

Монтажное исполнение фланец (тип-С)
| d |
to1 |
l |
l3 |
l4 |
t |
u |
i |
q |
DR |
30 *) |
k6 |
60 |
50 |
3.5 |
33 |
8 |
75 |
135 |
M10x22 |
40 |
k6 |
80 |
70 |
5.0 |
43 |
12 |
95 |
155 |
M16x36 |
| Мотор |
K48
k |
kB |
AC |
AD |
AG |
LL |
HH |
O |
Вес
K48 |
LA71 |
515.5 |
570.5 |
139.0 |
146 |
90 |
90 |
114.5 |
M20x1.5/M25x1.5 |
24 |
LA71Z |
534.5 |
589.5 |
139.0 |
146 |
90 |
90 |
114.5 |
M20x1.5/M25x1.5 |
24 |
LA80 |
552.5 |
616.0 |
156.5 |
155 |
90 |
90 |
114.0 |
M20x1.5/M25x1.5 |
29 |
LA80Z |
575.0 |
638.5 |
156.5 |
155 |
90 |
90 |
187.0 |
M20x1.5/M25x1.5 |
33 |
LA90S/L |
583.5 |
654.5 |
174.0 |
163 |
90 |
90 |
114.0 |
M20x1.5/M25x1.5 |
34 |
LA90ZL |
628.5 |
669.5 |
174.0 |
163 |
90 |
90 |
238.0 |
M20x1.5/M25x1.5 |
40 |
LA100L |
629.5 |
710.5 |
195.0 |
168 |
120 |
120 |
154.5 |
2xM32x1.5 |
43 |
LA100ZL |
699.5 |
780.5 |
195.0 |
168 |
120 |
120 |
286.5 |
2xM32x1.5 |
53 |
LA112M |
659.0 |
740.0 |
219.0 |
181 |
120 |
120 |
160.0 |
2xM32x1.5 |
53 |
LA112ZM |
687.0 |
768.0 |
219.0 |
181 |
120 |
120 |
264.0 |
2xM32x1.5 |
70 |

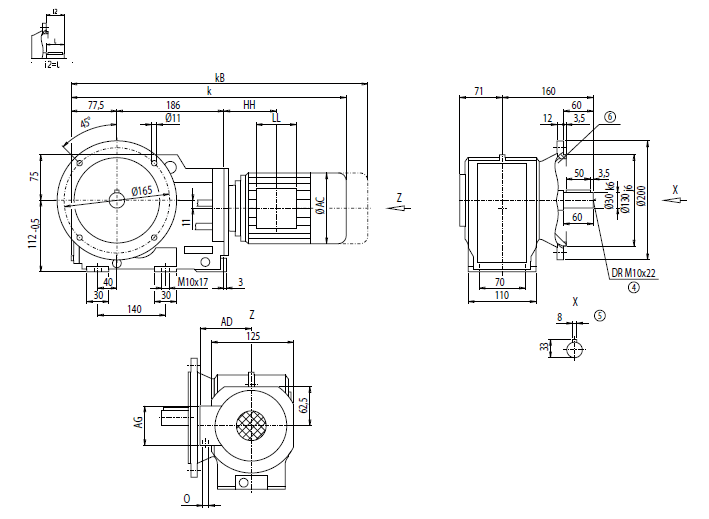

Монтажное исполнение на фланце (тип A)
| Мотор |
KF48
k |
kB |
AC |
AD |
AG |
LL |
HH |
O |
Вес
KF48 |
LA71 |
522.0 |
577.0 |
139.0 |
146 |
90 |
90 |
114.5 |
M20x1.5/M25x1.5 |
26 |
LA71Z |
541.0 |
596.0 |
139.0 |
146 |
90 |
90 |
114.5 |
M20x1.5/M25x1.5 |
26 |
LA80 |
559.0 |
622.5 |
156.5 |
155 |
90 |
90 |
114.0 |
M20x1.5/M25x1.5 |
31 |
LA80Z |
581.5 |
645.0 |
156.5 |
155 |
90 |
90 |
187.0 |
M20x1.5/M25x1.5 |
31 |
LA90S/L |
590.0 |
661.0 |
174.0 |
163 |
90 |
90 |
114.0 |
M20x1.5/M25x1.5 |
36 |
LA90ZL |
635.0 |
706.0 |
174.0 |
163 |
90 |
90 |
238.0 |
M20x1.5/M25x1.5 |
36 |
LA100L |
636.0 |
717.0 |
195.0 |
168 |
120 |
120 |
154.5 |
2xM32x1.5 |
45 |
LA100ZL |
706.0 |
787.0 |
195.0 |
168 |
120 |
120 |
286.5 |
2xM32x1.5 |
45 |
LA112M |
665.5 |
746.5 |
219.0 |
181 |
120 |
120 |
160.0 |
2xM32x1.5 |
56 |
LA112ZM |
693.5 |
774.5 |
219.0 |
181 |
120 |
120 |
264.0 |
2xM32x1.5 |
56 |

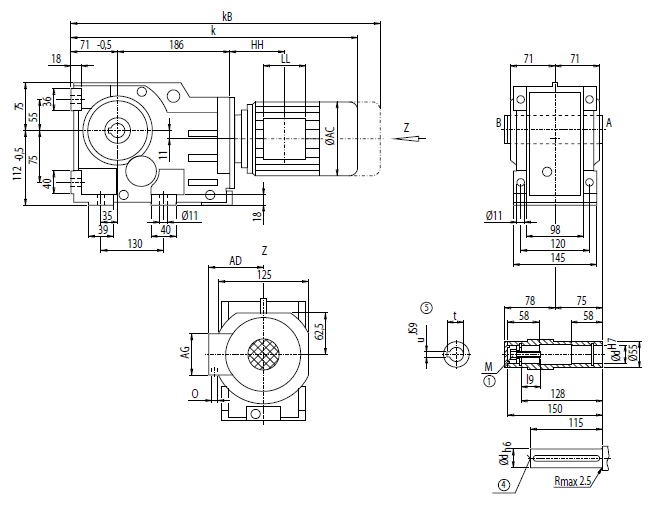

Монтажное исполнение корпус-фланец (тип C)
| d |
l9 |
M |
t |
u |
35 *) |
40 |
M12 |
38.3 |
10 |
40 |
48 |
M16 |
43.3 |
12 |
| Мотор |
KA48
k |
kB |
AC |
AD |
AG |
LL |
HH |
O |
Вес
KA48 |
LA71 |
515.5 |
570.5 |
139.0 |
146 |
90 |
90 |
114.5 |
M20x1.5/M25x1.5 |
23 |
LA71Z |
534.5 |
589.5 |
139.0 |
146 |
90 |
90 |
114.5 |
M20x1.5/M25x1.5 |
23 |
LA80 |
552.5 |
616.0 |
156.5 |
155 |
90 |
90 |
114.0 |
M20x1.5/M25x1.5 |
28 |
LA80Z |
575.0 |
638.5 |
156.5 |
155 |
90 |
90 |
187.0 |
M20x1.5/M25x1.5 |
32 |
LA90S/L |
583.5 |
654.5 |
174.0 |
163 |
90 |
90 |
114.0 |
M20x1.5/M25x1.5 |
32 |
LA90ZL |
628.5 |
669.5 |
174.0 |
163 |
90 |
90 |
238.0 |
M20x1.5/M25x1.5 |
38 |
LA100L |
629.5 |
710.5 |
195.0 |
168 |
120 |
120 |
154.5 |
2xM32x1.5 |
41 |
LA100ZL |
699.5 |
780.5 |
195.0 |
168 |
120 |
120 |
286.5 |
2xM32x1.5 |
51 |
LA112M |
659.0 |
740.0 |
219.0 |
181 |
120 |
120 |
160.0 |
2xM32x1.5 |
52 |
LA112ZM |
687.0 |
768.0 |
219.0 |
181 |
120 |
120 |
264.0 |
2xM32x1.5 |
59 |
|
