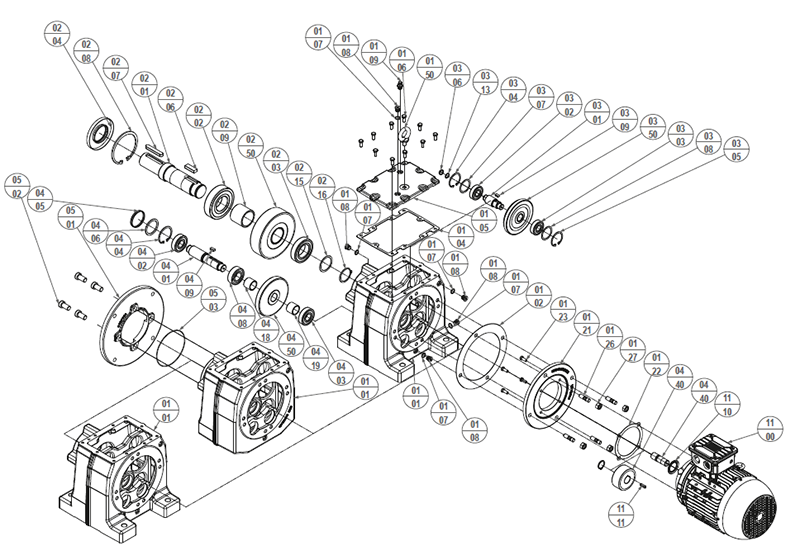

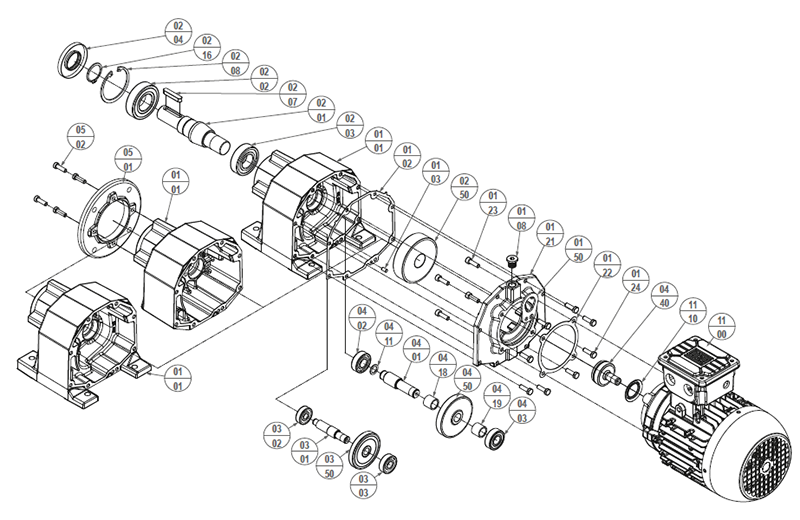

Внутреннее устройство редуктора Watt Drive (Ватт Драйв) серии WEG |
| |
|
Позиция |
Описание |
Позиция |
Описание |
01 |
00 |
Kit Housing |
04 |
00 |
Kit Output pinion shaft |
01 |
01 |
Housing |
04 |
01 |
Output pinion shaft |
01 |
02 |
Gasket housing/motor adapter |
04 |
02 |
Bearing 3 |
01 |
03 |
Pin |
04 |
03 |
Bearing 4 |
01 |
04 |
Housing gasket |
04 |
04 |
Circlip |
01 |
05 |
Inspection cover |
04 |
05 |
Bearing cover |
01 |
06 |
Inspection cover screw |
04 |
06 |
Shim washer |
01 |
07 |
Copper ring |
04 |
07 |
Adjusting washer |
01 |
08 |
Plug |
04 |
08 |
Bearing 5 |
01 |
09 |
Vent plug |
04 |
09 |
Shaft/Gear key/pin |
01 |
19 |
Stopper |
04 |
11 |
Shim washer |
01 |
20 |
Kit Case cover/Motor adapter |
04 |
18 |
Distance sleeve |
01 |
21 |
Case cover/Motor adapter |
04 |
19 |
Distance sleeve |
01 |
22 |
Motor gasket |
04 |
20 |
Kit Bearing carrier |
01 |
23 |
Motor screw |
04 |
21 |
Bearing carrier |
01 |
24 |
Case cover screw |
04 |
22 |
Bearing 5 |
01 |
25 |
Case cover screw |
04 |
23 |
Bearing 6 |
01 |
26 |
Pin screw |
04 |
24 |
Circlip |
01 |
27 |
Hexagon nut |
04 |
25 |
Distance sleeve |
01 |
50 |
Lifting eye/Ring screw |
04 |
26 |
Screws |
02 |
00 |
Kit Output shaft |
04 |
27 |
Adjusting washer |
02 |
01 |
Output shaft |
04 |
28 |
Shim washer |
02 |
02 |
Bearing 1 |
04 |
29 |
Circlip |
02 |
03 |
Bearing 2 |
04 |
30 |
Shim washer |
02 |
04 |
Shaft sealing 1 |
04 |
31 |
1st stage gear key/pin |
02 |
06 |
Shaft/Gear key |
04 |
39 |
Shim washer |
02 |
07 |
DE key |
04 |
40 |
Conical/Hole pinion |
02 |
08 |
Circlip 1 |
04 |
50 |
1st stage gear/Intermediate gear |
02 |
09 |
Distance sleeve |
05 |
00 |
Kit Output flange |
02 |
10 |
Bearing cover |
05 |
01 |
Output flange |
02 |
11 |
Adjusting washer |
05 |
02 |
Flange screw |
02 |
12 |
Shrink disc |
05 |
03 |
Gasket |
02 |
13 |
Glycodur bush |
05 |
10 |
Kit Torque arm |
02 |
14 |
Shim washer |
05 |
11 |
Torque arm |
02 |
15 |
Shim washer |
05 |
12 |
Silent block |
02 |
16 |
Circlip 2 |
05 |
13 |
Bushing |
02 |
17 |
Clamping bushing |
05 |
14 |
Screw |
02 |
18 |
Support bushing |
05 |
20 |
Kit Rubber buffer set |
02 |
50 |
Output gear |
05 |
21 |
Rubber buffer |
03 |
00 |
Kit intermediate pinion shaft |
05 |
22 |
Shim/Spring plate |
03 |
01 |
Intermediate pinion shaft |
05 |
30 |
Kit Shaft cover |
03 |
02 |
Bearing 5 |
05 |
31 |
Shaft cover |
03 |
03 |
Bearing 6 |
05 |
32 |
Gasket |
03 |
04 |
Circlip 1 |
05 |
33 |
Screw |
03 |
05 |
Circlip 2 |
05 |
40 |
Kit Hollow shaft fixing kit |
03 |
06 |
Bearing cover |
05 |
41 |
Disc |
03 |
07 |
Shim washer |
05 |
42 |
Circlip |
03 |
08 |
Adjusting washer |
05 |
43 |
Screw |
03 |
09 |
Shaft/Gear key |
11 |
00 |
Motor |
03 |
13 |
Circlip |
11 |
10 |
Slinger |
03 |
20 |
Bevel pair |
11 |
11 |
Motor shaft/Hole pinion key |
03 |
21 |
Shaft for bevel gear |
|
|
|
03 |
22 |
Circlip for bevel pinion |
|
|
|
03 |
23 |
Bevel pinion key |
|
|
|
03 |
50 |
1st stage gear |
|
|
|
|
| |
